AC1 ยป Oscillograms

20010/3003.652
Panasonic DMC-FZ50

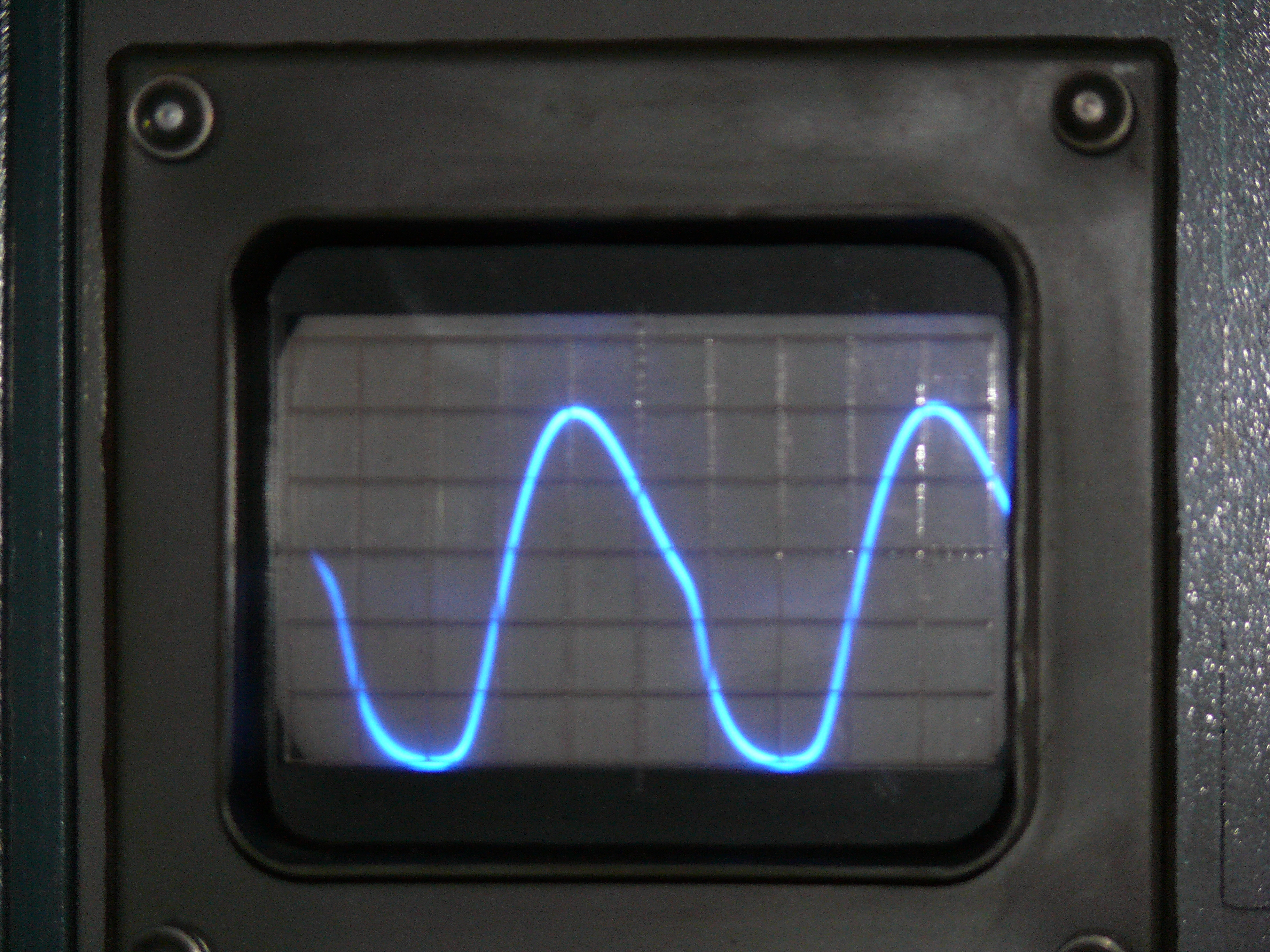

1MHz reference signal
20010/3003.652
Panasonic DMC-FZ50

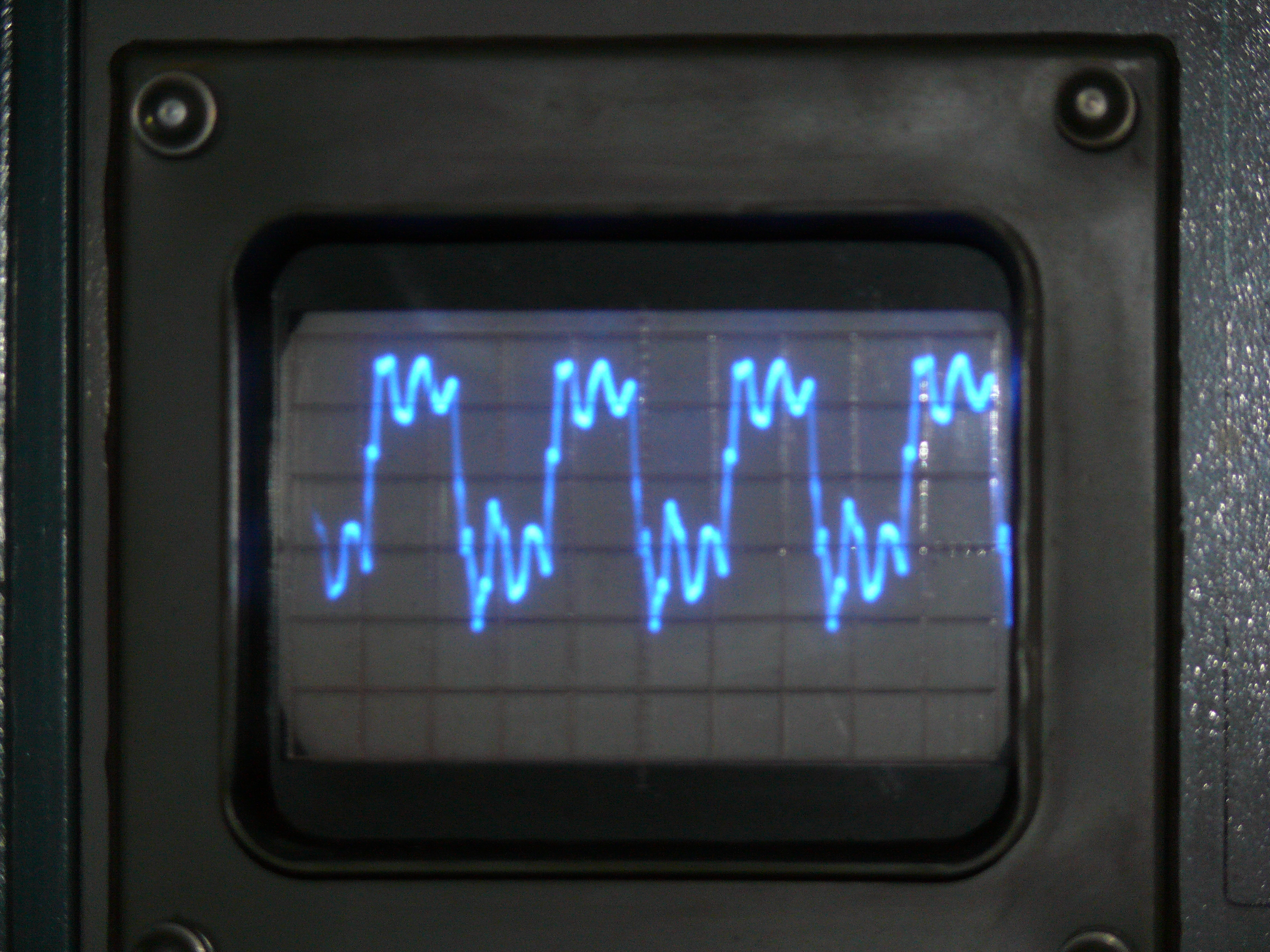

2MHz /CLOCK Signal
20010/3003.652
Panasonic DMC-FZ50

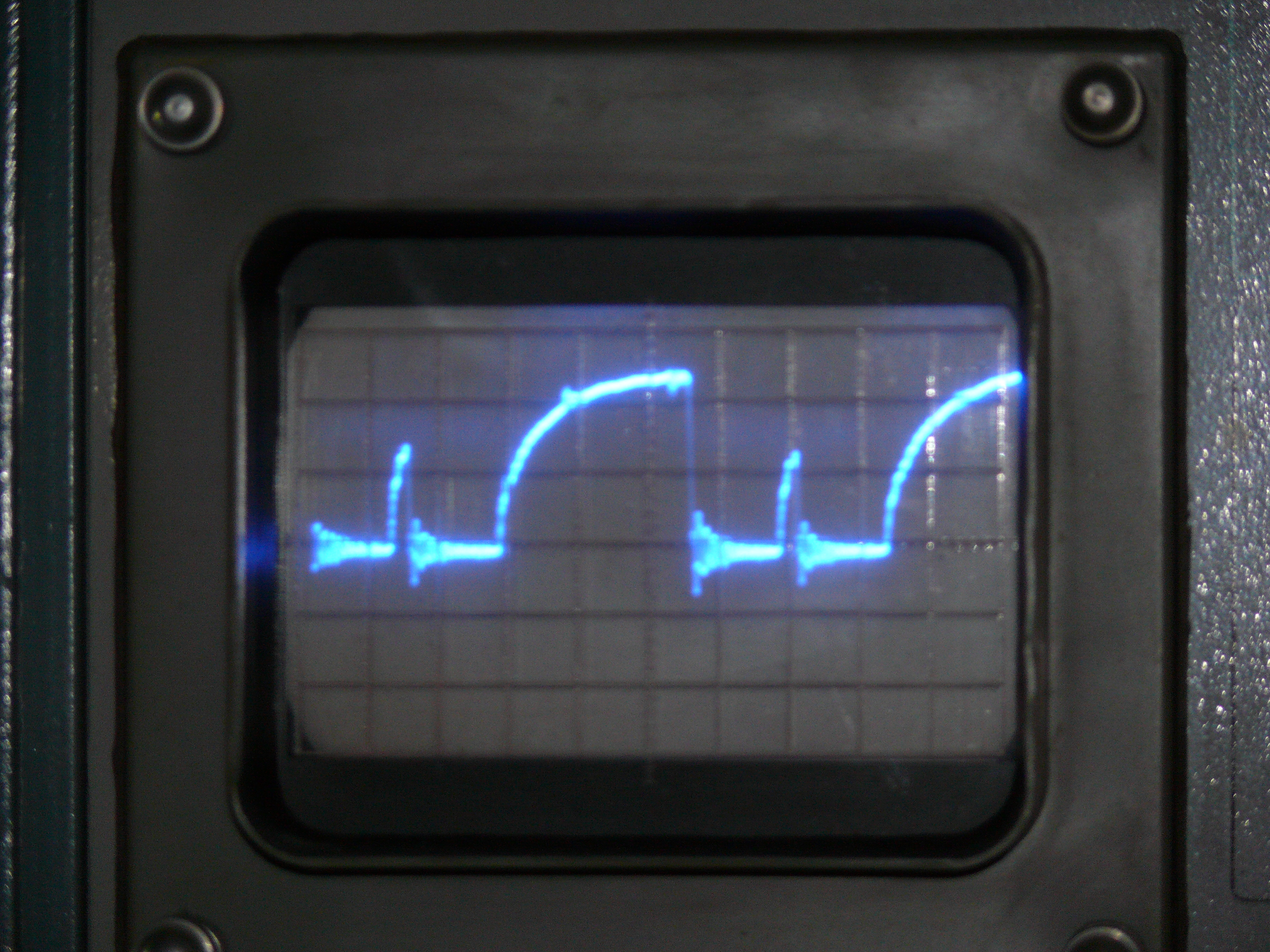

/CS @EPROM
20010/3003.652
Panasonic DMC-FZ50

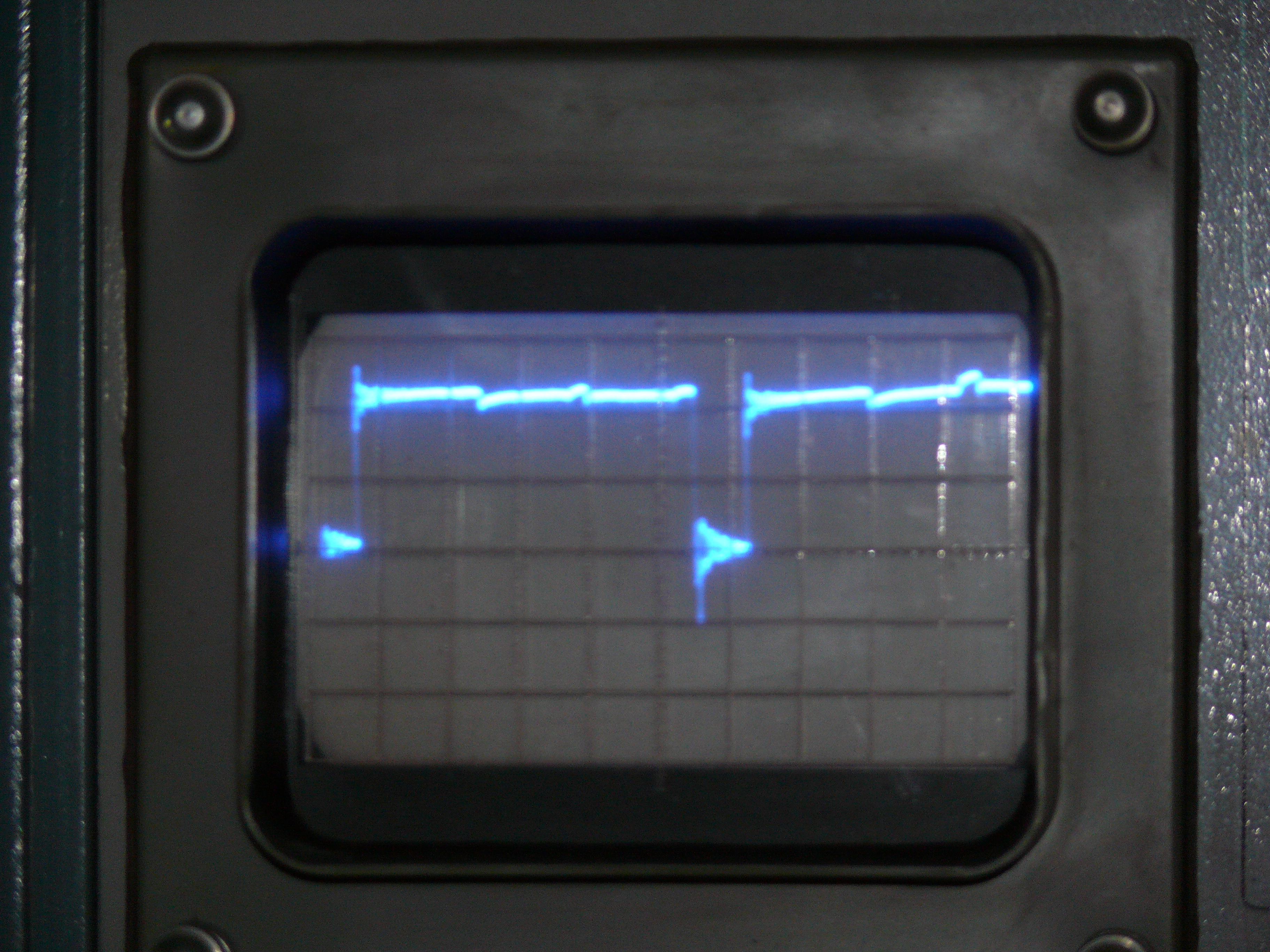

/MREQ Signal
20010/3003.652
Panasonic DMC-FZ50
DB1 Signal

Made with my C1-74. It is a dual beam oscilloscope mainframe which supports up to 50MHz
